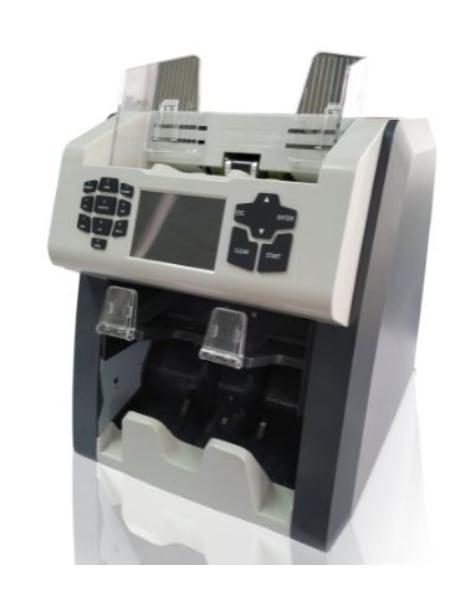

Magner 152 Bank note sorter

The Magner 152 banknote sorter has a modern, user-friendly interface for optimal efficiency.

The Model 152 uses a full range Magnetic sensor, dual full-color RGB CIS sensors (contact image sensors), Ultraviolet transmission and sensors, as well as Infrared sensors to provide rigorous counterfeit detection and reliable performance. Up to 20 currencies are available per machine.

Specifications:
Applicable Currencies: Maximum 20
Speed:-Count: 1,200 notes/min
Mixed denomination: 1,000 notes/min
Single denomination: 1,000 notes/min
Hopper Capacity: 500 notes
Stacker Capacity: 200 notes
Reject Capacity: 30-100 notes (adjustable)
Feed System: Friction Roller
Display: 3.5” TFT screen (thin film transistor)
Denomination Detection: Dual RGB CIS (Contact Image Sensors)
Thickness of currencies: 0.05-0.12mm
Size of currencies: W: 100-175mm, H: 50-90mm
Dimensions: 330(W) x 315(D) x 330(H)mm
Weight: 15kg
Power supply: 110/220V, 50/60Hz
Power consumption: 70W

Features:
Counterfeit Detection: Dual RGB CIS (Contact Image Sensors), UV (Ultraviolet), MG (Magnetic), MT (Metal Thread), IR (Infrared), IRT (Infrared Transmitter), IRR (Infrared Reflector)
Serial Number recognition: 800 notes/min, USD/EURO only
Connectivity: RS232 (External Printing), RJ45 (LAN), RJ12 (External Display), USB (software upgrades, information collection), Micro-SD card (information collection)
Optional: External Display, External Printer
Optional: Multiple Currency Detection
